QuadGuard® crash cushions are available to shield hazards from 610mm to 3200mm wide, and for speeds from 40km/h to 120km/h.

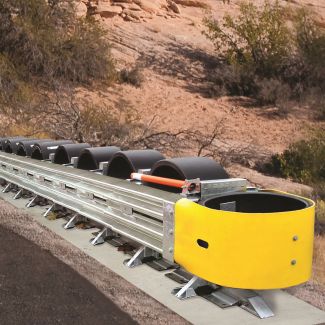

Each QuadGuard® System consists of crushable, energy-absorbing cartridges surrounded by a framework of exclusive steel Quad-Beam™ panels.

The QuadGuard® System has successfully passed the complete NCHRP 350 Test Level 2 & 3 test matrix.

Higher speed units are available. During head-on design impacts, the QuadGuard® Systems telescope rearward and progressively crush the cartridges to absorb the energy of impact.

When impacted from the side, the QuadGuard® System safely redirects the errant vehicle back toward its original path without gating.

Fully-tested transition panels are available to all common guard rail profiles, concrete structures and temporary steel barriers.

Features & Benefits:

- Compliant to NCHRP350, AS/NZS 3845:1999

- Compact modular design

- 1-12 bays accommodates speeds up to 120km/h

- Able to shield hazards up to 3200mm wide

- Monorail base eliminates the need for anchoring chains

- Simplified backups - choose from Tension Strut or Concrete

- Multiple transitions available

- High efficiency 80% re-usability after most design impacts
